8.8 Ring and pinion
|
|
|
Ford 8.8 ring and pinion
|
|
|
|
|
|
|
|
|
|
Strange pro race 28-35 spline drag race axle package
|
|
|
Pro race HY TUF aloy axles
|
|
|
|
|
|
|
|
|
|

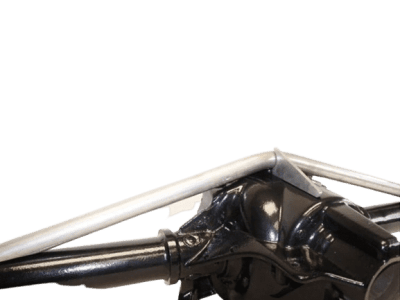

Team Z 8.8" Complete Brace Kit
|
|
|

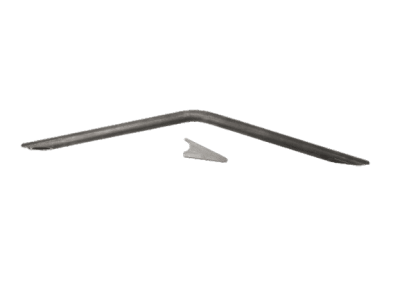

Our Complete Brace Kit come with both the Forward Brace kit and the Bottom Brace to ensure that you get the most support out of your 8.8" housing. Both kits will limit twisting and bending that may occur with higher horsepower. The front holes by the pinion must be drilled out to 7/16" to accommodate the hardware for the forward brace.
*PICTURES OF COMPLETE HOUSING DO NOT REPRESENT ACTUAL PARTS IN KIT, NO SHOCK MOUNTS ARE INCLUDED AND MUST BE PURCHASED SEPARATELY!
|
|
|
|
|
|
|
|
|
|
S60 GM F-Body housing
|
|
|
S60 fully welded GM F-Body bare housing with torque arm provision, choice of housing ends and F- Body mounts
|
|
|
|
|
|
|
|
|
|
Late Big Ford housing ends
|
|
|
Late Big Ford Ends (Torino Style) to use on your housing. Most common upgrade for 8.8" housing, used standard on all Team Z 9" Housings
3.150" Bearing Diameter
3.557" spread horizontally for bolts
2" Spread Vertically for bolts
|
|
|
|
|
|
|
|
|
|
Small Ford housing ends
|
|
|
Small Ford Housing Ends, sold in pair
|
|
|
|
|
|
|
|
|
|
Ford 8.8 weld-on housing ends for 3.150 bearing
|
|
|
Ford 8.8 weld-on housing ends for 3.150 bearing, Sold in pairs
|
|
|
|
|
|
|
|
|
|
Early Big Ford housing ends
|
|
|
Early Big Ford housing ends, sold in pairs
|
|
|
|
|
|
|
|
|
|
Strange PRF180 HD Pro Aluminum Case Assembly Aluminum Support with Differential Standard Gear & 1350 Series Yoke
|
|
|
Complete Center Section Includes:
N2300 / N2303
3.062″ Bore HD Pro Aluminum Case for 28 or 31 spline
3.250″ Bore HD Pro Aluminum Case for 35 spline
Cases feature billet aluminum main caps and solid steel adjuster nuts
N2322
Forged Aluminum Tapered Bearing Pinion Support
Over sized bearings and races
Pinion seal retained by snap ring
N1974 / N1970F
Clutch Style 28 or 31 Spline Differential
Choice of 3.00-6.50 Standard Gear
U2203 & U1610
1350 Series Yoke with Dust Shield and U-bolts
Professionally Assembled
Timken® Bearings & Races
Grade 8 Ring Gear Bolts
Options
Differential
OPRF09 28 or 31 spline Eaton Truetrack N1981 / N1979…. $200
OPRF10 35 spline Strange forged S-Trac N1980………………. $510
OPRF11 35 spline Eaton cast iron Truetrack N1971T……….. $400
OPRF17 28, 31, or 35 spline Eaton Detroit Locker…………….. $165
Yoke
OPRF07 1350 Strange chrome moly yoke U1603… $35
|
|
|
|
|
|
|
|
|
|
Strange PRF184 HD Pro Aluminum Case Assembly Aluminum Support with Lightweight Steel Spool Standard Gear & Chrome Moly Yoke
|
|
|
Complete Center Section Includes:
N2300 / N2303
3.062″ Bore HD Pro Aluminum Case for 31 or 33 spline
3.250″ Bore HD Pro Aluminum Case for 35 or 40 spline
Cases feature billet aluminum main caps and solid steel adjuster nuts
N2322
Forged Aluminum Tapered Bearing Pinion Support
Over sized bearings and races
Pinion seal retained by snap ring
D1553 / D1554 / D1555
Lightweight steel spool in 31, 33, or 35 spline
Choice of 3.00-6.50 Standard Gear
U1603 & U1610
Chrome Moly 1350 Series Yoke with U-bolts
Professionally Assembled
Timken® Bearings & Races
Grade 8 Ring Gear Bolts
Options
Case / Support
N1910 Load bolt – Will not work with lightened gear… $39
OPRF26 Ball bearing pinion support N2323……………… $110
Gear Set / Bearings
OPRF42 MicroBlue gear set and bearings & races D3598G & D3598BT… $308
D3596 Lighten ring gear… $75
Spool
OPRF01 Lightweight 40 spline spool D2000… $73
OPRF19 Aluminum 35 spline spool D1565… $140
Yoke
OPRF13 1350 aluminum yoke U1633… $124
Pick-up collar
U1613 One magnet….. $48
U1613-2 Two magnet….. $52
U1613-4 Four magnet…. $60
U1613-8 Eight magnet… $129
|
|
|
|
|
|
|
|
|
|
Strange PRF188 HD Pro Aluminum Case Assembly Aluminum Support with Lightweight Steel Spool 28 Spline Pro Gear & Chrome Moly Yoke
|
|
|
Complete Center Section Includes:
N2300 / N2303
3.062″ Bore HD Pro Aluminum Case for 31 or 33 spline
3.250″ Bore HD Pro Aluminum Case for 35 or 40 spline
Cases feature billet aluminum main caps and solid steel adjuster nuts
N2322
Forged Aluminum Tapered Bearing Pinion Support
Over sized bearings and races
Pinion seal retained by snap ring
D1553 / D1554 / D1555
Lightweight steel spool in 31, 33, or 35 spline
Choice of 4.86-6.50 28 Spline Pro Gear
U1603 & U1610
Chrome Moly 1350 Series Yoke with U-bolts
Professionally Assembled
Timken® Bearings & Races
Grade 8 Ring Gear Bolts
Options
Case / Support
N1910 Load bolt – Will not work with lightened gear
OPRF26 Ball bearing pinion support – N2323
Gear Set / Bearings
OPRF05 9″ 3.40-4.86 35 spline Pro gear
OPRF52 9 1/2″ 3.25-5.14 Pro gear
OPRF42 MicroBlue gear set, bearings, & races D3598G / D3598BT
D3596 Lighten ring gear
Spool
OPRF01 Lightweight 40 spline spool – D2000
OPRF19 Aluminum 35 spline spool – D1565
Yoke
OPRF13 1350 aluminum yoke – U1633 / U1634
Pick-up collar for 28 spline pinion
U1613 One magnet
U1613-2 Two magnet
U1613-4 Four magnet
U1613-8 Eight magnet
Pick-up collar for 35 spline pinion
U1614 One magnet
U1614-2 Two magnet
U1614-4 Four magnet
U1614-8 Eight magnet
|
|
|
|
|
|
|
|
|
|
Strange PRF192 HD Pro Aluminum Case Assembly Aluminum Support with HD 40 Spline Lightweight Spool 28 Spline Pro Gear & Chrome Moly Yoke
|
|
|
Complete Center Section Includes:
N2307
Strange 3.812″ Bore HD Pro Aluminum Case
Features billet aluminum main caps and adjuster nuts
N2322
Forged Aluminum Tapered Bearing Pinion Support
Over sized bearings and races
Pinion seal retained by snap ring
D2002
Heavy Duty 40 Spline Lightweight Steel Spool
Bearing journal increased to 2.250″ for additional load capacity
Choice of 4.86-6.50 28 Spline Pro Gear
U1603 & U1610
Chrome Moly 1350 Series Yoke with U-bolts
Professionally Assembled
Timken® Bearings & Races
Grade 8 Ring Gear Bolts
Options
Case / Support
N1910 Load bolt – Will not work with lightened gear… $39
OPRF26 Ball bearing pinion support N2323……………… $110
Gear Set / Bearings
OPRF05 9″ 3.40-4.86 35 spline Pro gear… $50
OPRF52 9 1/2″ 3.25-5.14 Pro gear…………. $170
OPRF42 MicroBlue gear set, bearings, & races D3598G / D3598BT… $308
D3596 Lighten ring gear… $75
Spool
OPRF29 Aluminum 40 spline spool D2004… $95
Yoke
OPRF13 1350 aluminum yoke U1633 / U1634… $124
Pick-up collar for 28 spline pinion
U1613 One magnet….. $48
U1613-2 Two magnet….. $52
U1613-4 Four magnet…. $60
U1613-8 Eight magnet… $129
Pick-up collar for 35 spline pinion
U1614 One magnet….. $48
U1614-2 Two magnet….. $52
U1614-4 Four magnet…. $60
U1614-8 Eight magnet… $129
|
|
|
|
|
|
|
|
|
|
Strange 9" Ford Housing For GM G-Body Application Includes Mounts, Ends, Fill, Drain, & Vent
|
|
|
Application
Bolt-in housing for GM G-Body
Custom widths available at no additional charge
Center Housing – H1110
Constructed from .141″ mild steel
Heavy duty .282″ thick face plate
Internal gussets provide rigidity and support axle tubes
Slots allow exceptional weld contact of housing to tubes
Fill & Drain plugs – H1116 / H1117D
Facilitate fluid changes
Tubing – H1139
3″ OD .250″ wall mild steel tubing
Vent – H1112B
Prevents build-up of internal pressure
Ensures sealing integrity
GM G-Body Coil Spring Mounts
Includes mounts for upper and lower control arms
Choice of Housing Ends
H1143 / H1137
Professionally welded in Strange manufactured fixtures
|
|
|
|
|
|
|
|
|
|
S60 GM G-Body housing / choice of ends / with mounts
|
|
|
S60 fully welded G-Body bare housing, upper & lower control arm mounts, and choice of housing ends.
|
|
|
|
|
|
|
|
|
|
Team Z Outlaw Series Ladder Bar Kit - Universal
|
|
|
Team Z Outlaw Series ladder bar suspension packages exclusively feature an original Team Z design for small tire cars our unique design has changed the leverage points to greatly improve traction on high horse power small tire application while reduced binding and side load. Everyone that has ever made adjustments to a ladder bar car knows how difficult and painful it can be to reinstall the ladder bars after any adjustment is made. The innovative design of our ladder bars means that you will never again have to get the pry bar out to reinstall your ladder bars.
Our Ladder Bar Suspension Systems include: 4130 Molly Team Z designed Ladder Bars Our unique design housing brackets Front dropped crossmember and brackets Rod End Safety Hoop Rod Ends Adjustable Lower Shock Mount All Hardware Also available with custom valved shocks
|
|
|
|
